Hormann Up & Over Doors Technical Information
Up & over garage doors come in two types of gear either Canopy or Retractable. The main difference between the two is in the action the door takes to open. Up & over garage doors come in a variety of materials such as Steel, Timber, Upvc & GRP. All up & over garage doors require a frame to fit to, this can be either Timber or Steel (Steel would be our recommendation).
The information contained on this website for up & over garage doors is based upon the Hörmann up & over garage door.
Long-
The Canopy Gear
Hörmann canopy geared doors are tested and
certified according to the high safety requirements and performance characteristics
of the European Standard 13241-
Everything is perfectly matched: the precision vertical track guidance, the smooth running plastic rollers, the plastic profiles down the sides (no steel to steel contact) and the galvanised torsion spring. All this giving the door a smooth, quiet door action.
Hörmann offers a steel fixing frame for all canopy doors. This frame makes an on site timber frame redundant and makes it quick and easy to fit.

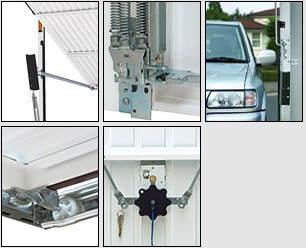

Two point locking as standard with hard PVC latches in tough zinc diecast housings that engage automatically and quietly at either side of the door into steel latch keeps.
Four point locking arrangement is available as a factory fitted optional extra.
Factory-
• Anti-
• Door clips
to keep the door open, not allowing the wind to blow it down.
• Protective cover strips
on the frame & door leaf to prevent trapped fingers.
• Door cables are internally
guided.
• Cables run on a cast alloy drum with deep grooves to ensure the cables
fit
securely & prevents the cables jumping.
• The thickest 2.4mm cable on the market
The Retractable Gear
tested and certified according to the high safety requirements and performance characteristics
of the European standard 13241-
As with the Canopy gear everything is perfectly matched: the four point suspension,
the precision track guidance, the smooth-
Hörmann offers a steel fixing frame for all canopy doors. This frame makes an on site timber frame redundant and makes it quick and easy to fit.
Two point locking as standard with hard PVC latches in tough zinc diecast housings
that engage automatically and quietly at either side of the door into steel latch
keeps.
Four point locking arrangement is available as a factory fitted optional extra.
Factory-
• Multiple spring safety system: In the event that one of the springs should
break
the others safeguard the door.
• Precision track guidance prevents the door leaf from
“derailing”.
• Unique track well: Once fully opened the door is gently cushioned and
always brought to a safe, reliable halt in the track well.
• Flexible plastic profiles
down the sides act as reliable side trap guards
between the door & frame.
• The distance
between the spring windings is so small that even children’s
fingers are reliably
protected
Retractable plus gear available as an optional extra. Still conforming to EN 13241-
Both types of gear are available with a sturdy steel frame. They a galvanised
steel, welded into a wide robust box section construction which gives the door frame
great strength and stability. The finish is powder coated. Frames are 75mm wide as
standard with the option of a 60mm wide on Canopy gear.
